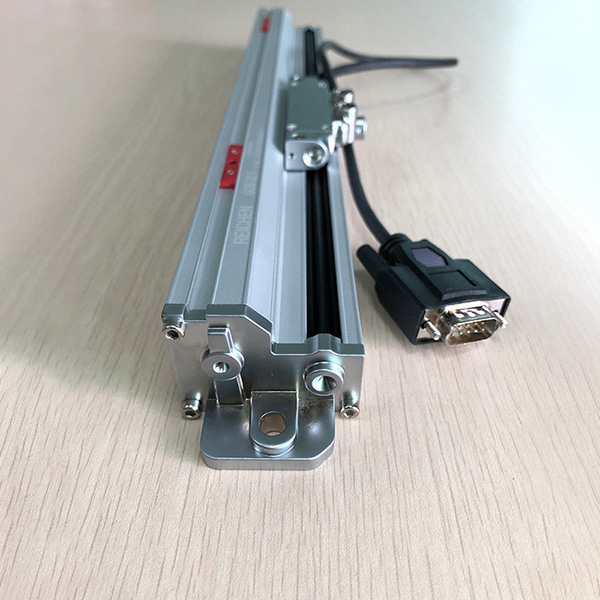

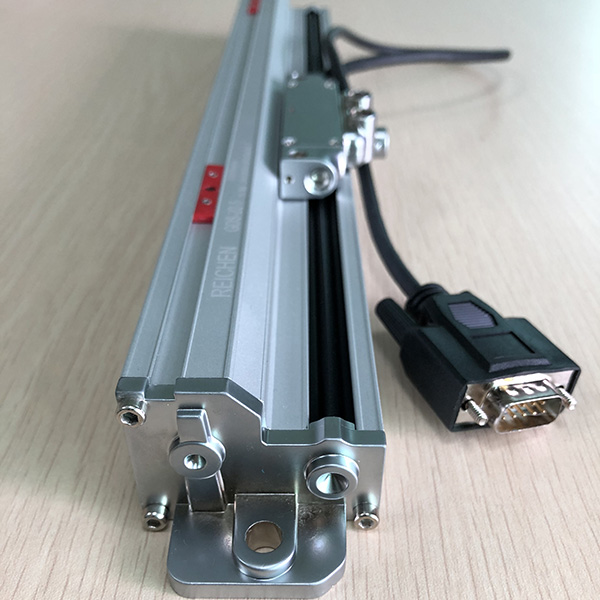

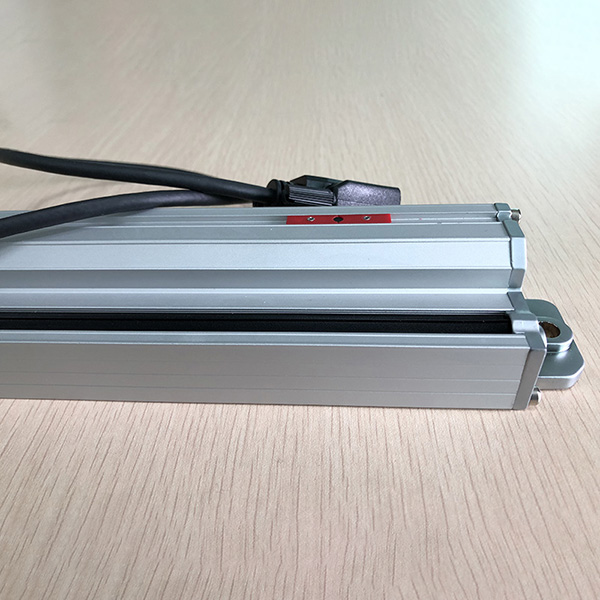

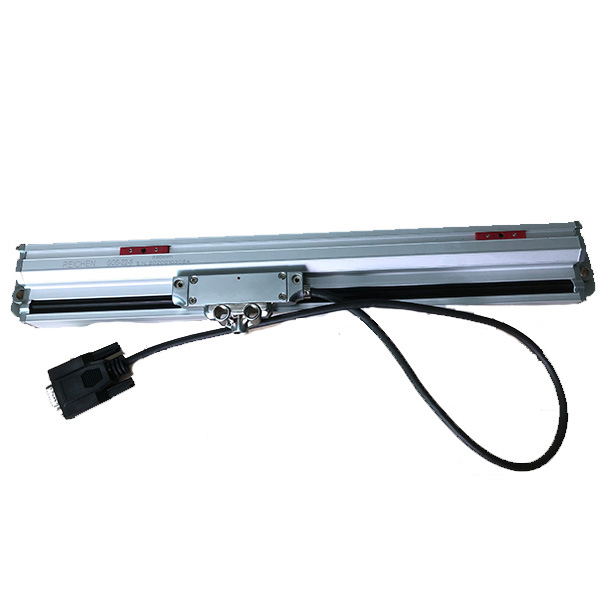

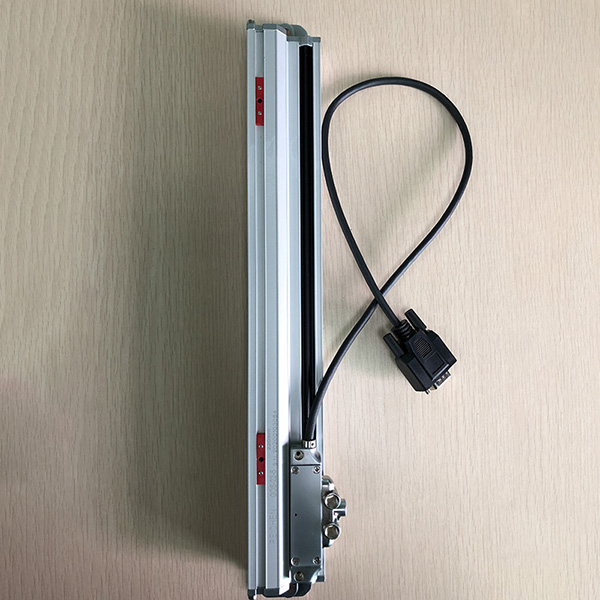

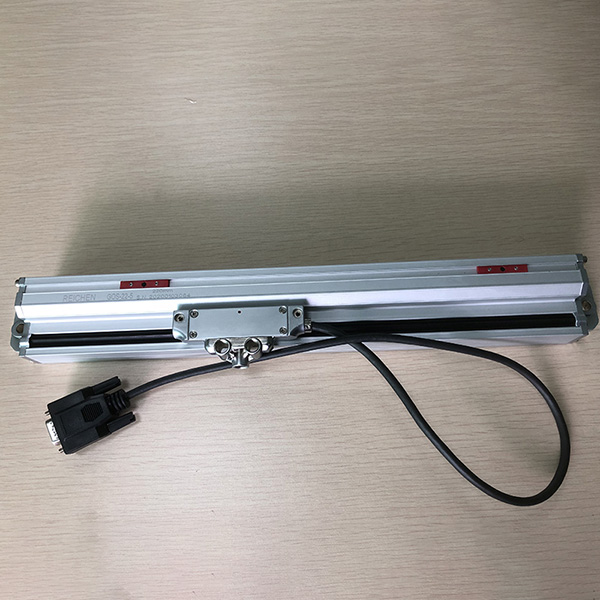

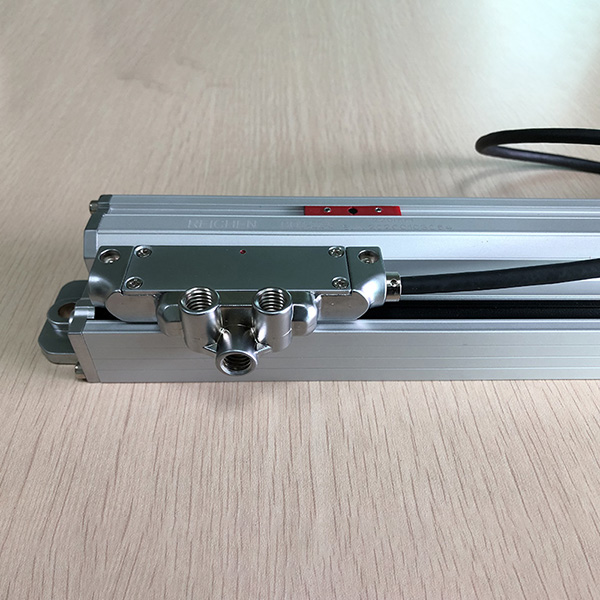

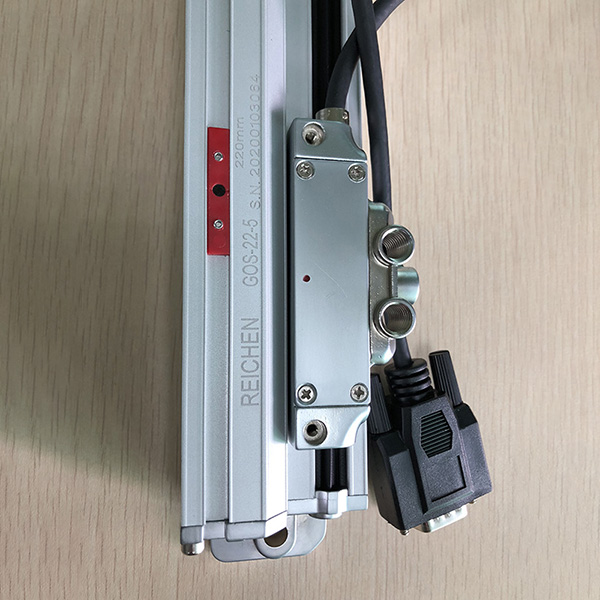

Bending machine guide scale
Name：Bending machine guide scale
German Brand：REICHEN
Model：GOS-27-5
Travel：270mm
Bending machine guide scale signal graph:
|
Plug model code |
Pin number |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
|
9 D |
Thread color |
Yellow |
Green |
Blue |
Black |
White /Black |
Red/Black |
White |
Red |
|
|
signal |
Z |
B |
A |
0V |
/Z |
/B |
/A |
5V |
Installation dimensions:
