HYDRAULIC NC PRESS BRAKE

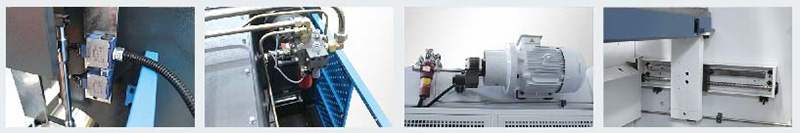

Standard configuration
Siemens main motor
Germany Bosch Rexroth hydraulic system
Germany EMB tube connector
Schneider electrics
HIWIN linger guide and ball screw
Front support and side curtains
USA SUNNY pump
Estun E21 economic controller
CE safety certifications
E21
●Backgauge control and intelligent
positioning
●Workpiece counting and conces-
sion positioning
●Memory capacity: 40 programs
stored, 25 steps per program
●One-key backup / restore
E200P
●High-definition LCD display
●Servo control technology supported.
●Unilateral and bilateral location
●Backguage automatic homing.
CybTouch 8
●Large, vivid and high-contrast fully
touch screen.
●Simple pages, clear display. large
keys.
●Simple single bends with EasyBend
page.
●Online help and warning pop-ups
DA-41s
●Servo control technology support-
ed.
●4.7monochrome LCD display.
seletctable languages.
●Tooling parameters set; bending
angle programmable.
●Memory capacity; 100 programs,
25 steps for each program.
Technical Specifications
| TYPE | NomiztForce | Worktaple (mm) |
PolesDistance | ThrgatDopth | Slidertravel | Maxopen | RWT | WR8yt | DimensionLxWxH mm) |
|
| 63t/2500 | 630 | 2500 | 1900 | 250 | 120 | 360 | 5.5 | 3800 | 2500x1600x2210! | |
| 63t/3200 | 630 | 3200 | 2600 | 220 | 120 | 360 | 5.5 | 4500 | 3200x1600x2210 | |
| 80t/2500 | 800 | 2500 | 1900 | 320 | 120 | 380 | 7.5 | 4600 | 2500x1500x2300 | |
| 80t/3200 | 800 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 5600 | 3200x1700x3200 | |
| 80t/4000 | 800 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 6200 | 4000x1700x2400 | |
| 100t/2500 | 1000 | 2500 | 1900 | 320 | 120 | 380 | 7.5 | 5200 | 2500x1600x2400 | |
| 100t/3200 | 1000 | 3200 | 2600 | 320 | 120 | 380 | 7.5 | 6000 | 3200x1800x2500 | |
| 100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 380 | 7.5 | 7100 | 4000x1800x2500 | |
| 125t/2500 | 1250 | 2500 | 1900 | 320 | 120 | 400 | 7.5 | 5800 | 2500x1600x2450 | |
| 125t/3200 | 1250 | 3200 | 2600 | 320 | 120 | 400 | 7.5 | 6500 | 3200x1850x2500 | |
| 125t/4000 | 1250 | 4000 | 3100 | 320 | 120 | 400 | 7.5 | 7400 | 4000x1800x2500 | |
| 160t/3200 | 1600 | 3200 | 2600 | 320 | 200 | 450 | 11 | 9500 | 3200x1900x2700 | |
| 160t/4000 | 1600 | 4000 | 3100 | 320 | 200 | 450 | 11 | 10500 | 4000x1900x2700 | |
| 160t/5000 | 1600 | 5000 | 4000 | 320 | 200 | 450 | 11 | 12000 | 5000x1900x3100 | |
| 200t/3200 | 2000 | 3200 | 2600 | 320 | 200 | 450 | 11 | 10500 | 3200x1950x2800 | |
| 200t/4000 | 2000 | 4000 | 3100 | 320 | 200 | 450 | 11 | 11500 | 4000x1950x2800 | |
| 200t/5000 | 2000 | 5000 | 4000 | 320 | 200 | 450 | 11 | 14000 | 5000x1950x3000 | |
| 200t/6000 | 2000 | 6000 | 5000 | 320 | 250 | 450 | 18.5 | 16500 | 8000x1950x3300 | |
| 250t/4000 | 2500 | 4000 | 3100 | 350 | 250 | 550 | 18.5 | 18000 | 4000x2000x3400 | |
| 250t/6000 | 2500 | 6000 | 5000 | 350 | 250 | 550 | 18.5 | 21500 | 6000x2000x3100 | |
| 300t/4000 | 3000 | 4000 | 3100 | 350 | 250 | 550 | 22 | 21000 | 4000x2000x3450 | |
| 300t/6000 | 3000 | 6000 | 5000 | 350 | 250 | 550 | 22 | 25000 | 6000x2000x3800 | |
| 400t/4000 | 4000 | 4000 | 3100 | 380 | 250 | 550 | 30 | 23000 | 4000x2180x3800 | |
| 400t/6000 | 4000 | 6000 | 5000 | 380 | 250 | 550 | 30 | 29000 | 6000x2180x4200 | |
| 500t/5000 | 5000 | 5000 | 3900 | 400 | 300 | 650 | 37 | 39000 | 5200x2300x4000 | |
| 500t/6000 | 5000 | 6000 | 4900 | 400 | 300 | 650 | 37 | 42000 | 6200x2300x4000 | |
| 500t/8000 | 5000 | 8000 | 6900 | 400 | 300 | 650 | 45 | 52000 | 8200x2350x4200 | |
| 600t/5000 | 6000 | 5000 | 3800 | 400 | 300 | 650 | 37 | 46000 | 5200x2550x4000 | |
| 600t/6000 | 6000 | 6000 | 4800 | 400 | 300 | 650 | 37 | 51000 | 6200x2550x4200 | |
| 6001/8000 | 6000 | 8000 | 6800 | 400 | 300 | 650 | 45 | 65000 | 8300x2600x4500 | |
| B00t/5000 | 8000 | 5000 | 3800 | 400 | 300 | 650 | 45 | 56000 | 5200x2600x4200 | |
| 800t/6000 | 8000 | 6000 | 4800 | 400 | 300 | 650 | 45 | 63000 | 6200x2600x4300 | |
| 800t/8000 | 8000 | 8000 | 6800 | 400 | 300 | 650 | 55 | 72000 | 8200x2700x4600 | |
