Manufacturer of Gantry Type Surface Grinding Machine - Taiwan quality Chinese price SVP Series Vertical Machining Center – BiGa Detail:

SVP Series

MVP Series is satisfy customers’ needs of high- speed, high- accuracy and high- rigidity cutting equipment.



Feature

1.Heavy, wide- body structure and high standards machine accessories ensures high-rigidity and high- accuracy of machine.

2.45mm ultra – heavy load, high accuracy, low friction coefficient roller linear guide ways, the overall motor base together with diaphram coupling can provide the high keen dynamic performance.

3.Increasing the bottom supporting point of the machine and enlarging the horizontal screws can better absorb the processing load and the appropriately transfer a part ofload to the ground.

4.The machine body is made by best Meehanite cast iron, and all major contact surface are all scrapped by excellent skill, which not only improve the overall performance ofthe machine, but also prolong the working life of the machine.



Travel, table size, load

Table size Unit SVP650 SVP850 SVP860 SVP1160
Long (X) mm 750 1000 950 1200
Width(Y) mm 520 500 600 600
Load kg 400 500 600 800
Travel Unit
x-axis travel (left and
right)		 mm 600 800 800 1100
Y-axis travel(front and
back)		 mm 500 500 600 600
z- axis travel (up and
down)		 mm 550 550 600 600

All parts are precise manufactured, careful ad justment and strict assembly.

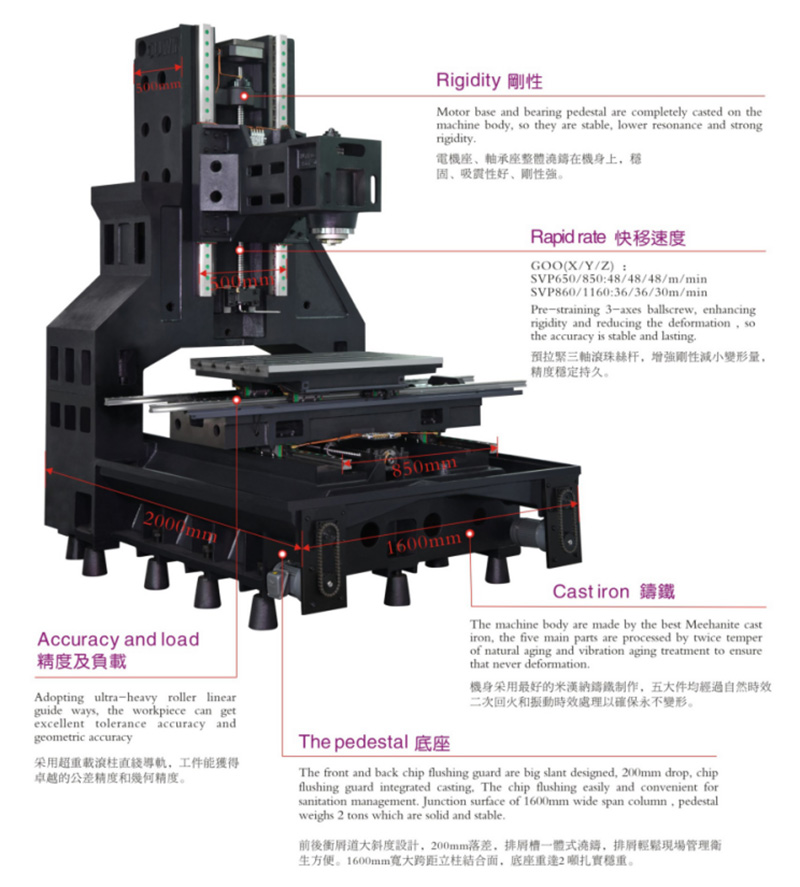

Vertical Machining Center1

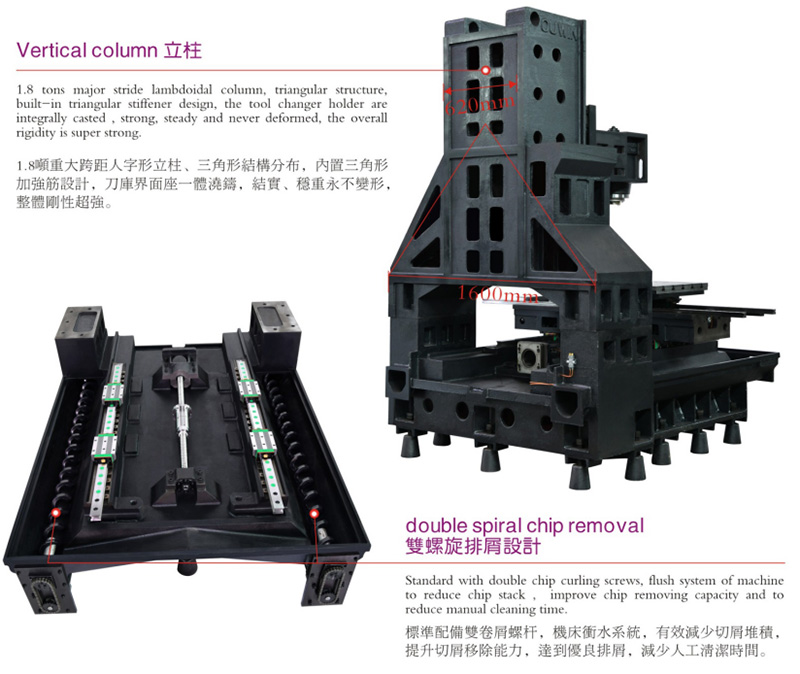

Vertical Machining Center2
Vertical Machining Center3
Vertical Machining Center4

Standard accessories

Vertical Machining Center5

optional accessories

  optional accessories T echnical package
spindle center water output (with filter)the forth axisHydraulic station (Taiwan) without electronic valvedirect coupled spindle12000rpm/7.5kw

belt-type spindle

8000rpm/ 18.5kw

Chain-plate dust collector

oil collector、air conditioner for electric box

Z axis heighten 300mm

 tool setting gaugecutting fluid level detecting deviceautomatic doorOperator safety barriers of automatic doorDoor Interlock Device

electric oil – water separator

Hydraulic station (China) without electronic valve

 10000rpm High rigidity(belt -type spindle)spindle cylinder24P arm type equency- conversionTool change time

T toT: 2.5 sec

CtoC: 4.5 sec

enlarge I0 storage, electrical equipment

upgrade,point to point panel

Z axis heighten 200mm

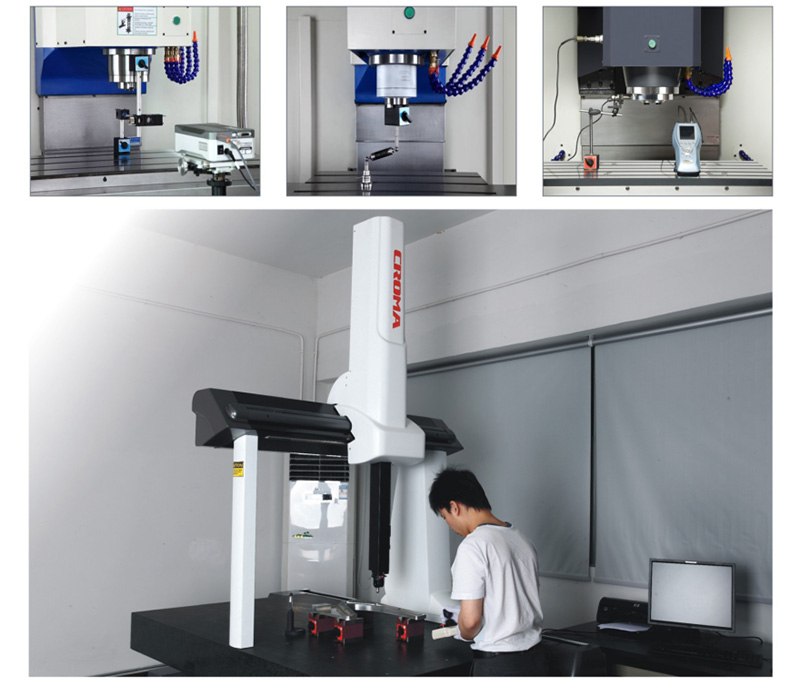

Vertical Machining Center6

Spindle vibration testing

Using Germany W ENZEL 3D CMM machine to make sure spindle quality

Renishaw laser interferometer

Follow German VDI3441 standard testing to ensure the positioning and repeatability accuracy.

Renishaw ballbar

Optimized circular interpolation in x,y,z planes by tuning each servo drive.

3D coordinate measurement

The main parts of the machine testing before assembly and the accuracy testing of the experiment processing parts.

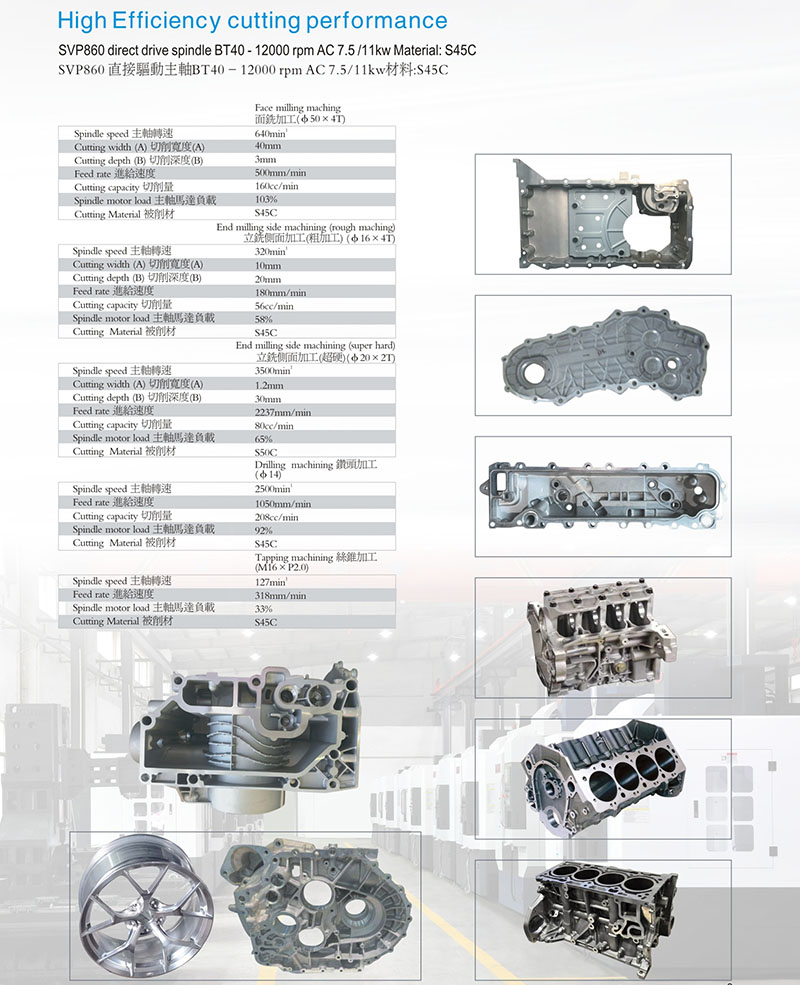

efficiency
diagram

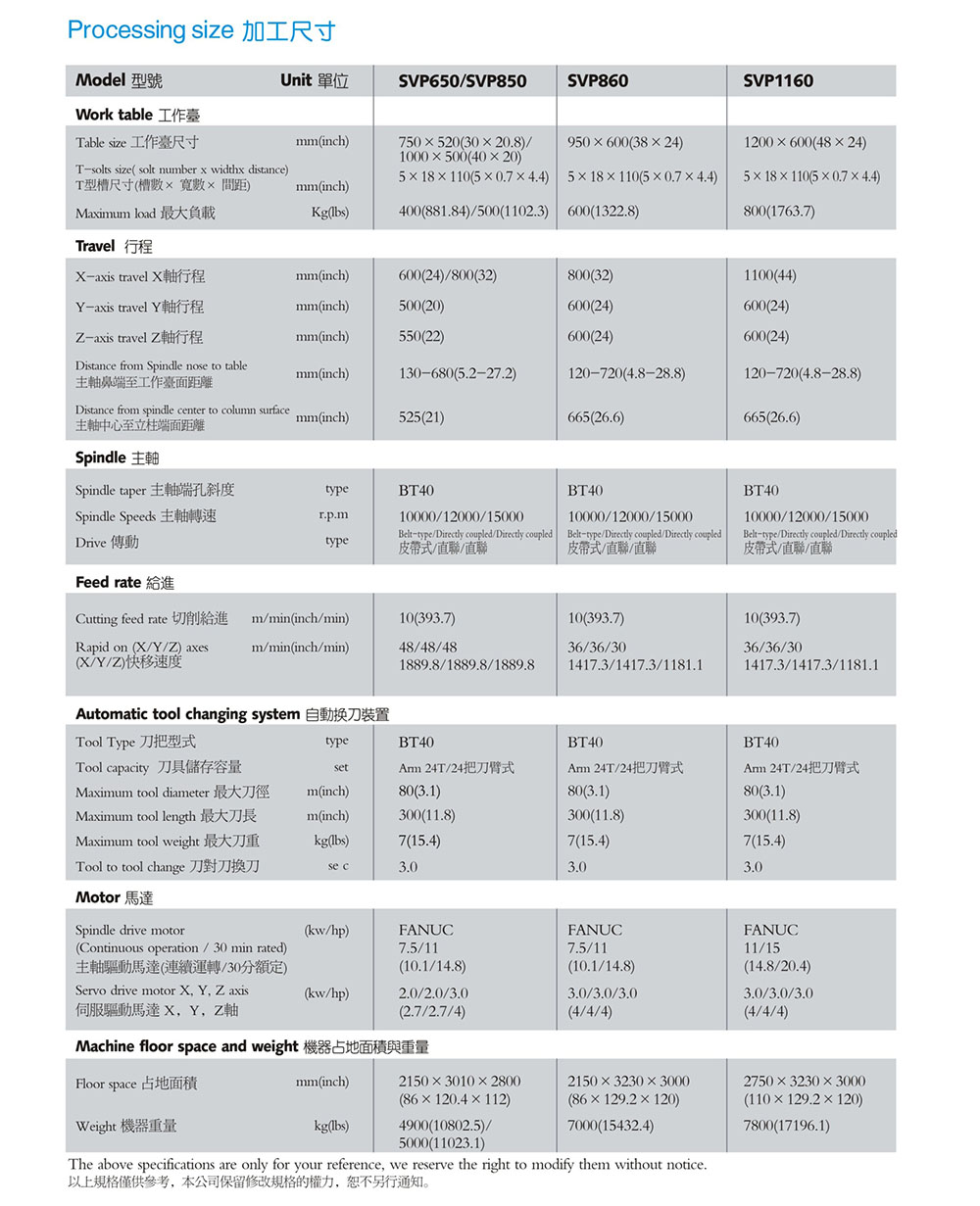

processing

Product detail pictures:

Manufacturer of Gantry Type Surface Grinding Machine - Taiwan quality Chinese price SVP Series Vertical Machining Center – BiGa detail pictures

Manufacturer of Gantry Type Surface Grinding Machine - Taiwan quality Chinese price SVP Series Vertical Machining Center – BiGa detail pictures

Manufacturer of Gantry Type Surface Grinding Machine - Taiwan quality Chinese price SVP Series Vertical Machining Center – BiGa detail pictures

Manufacturer of Gantry Type Surface Grinding Machine - Taiwan quality Chinese price SVP Series Vertical Machining Center – BiGa detail pictures
