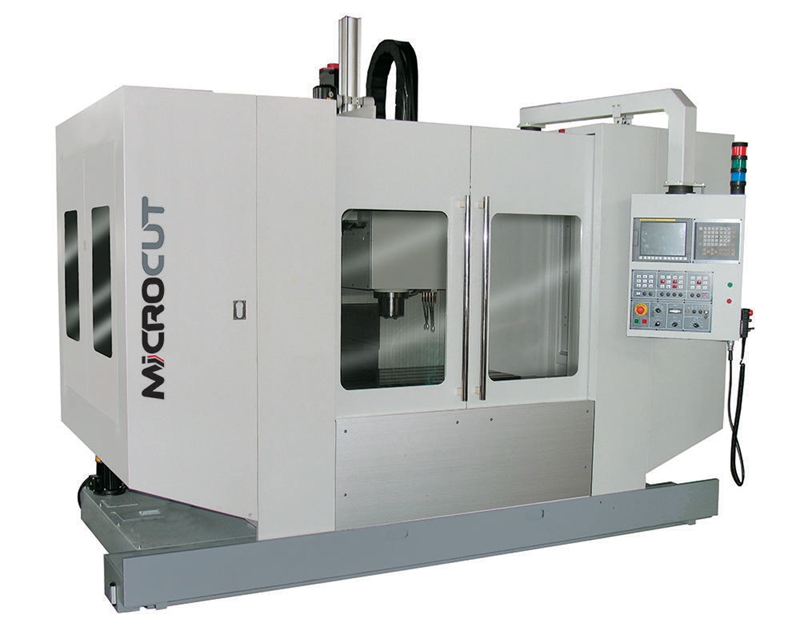

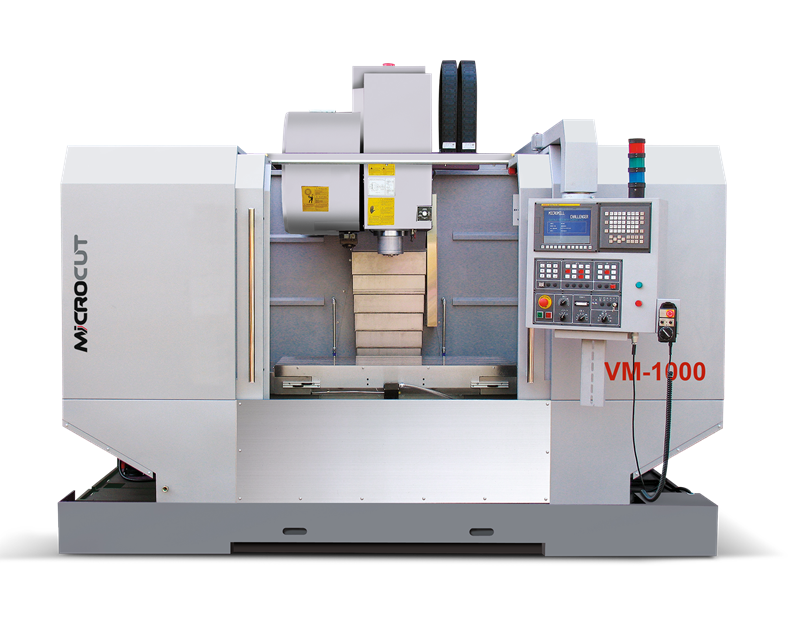

Microcut VM-1000 vertical machining center with wide window
Features:

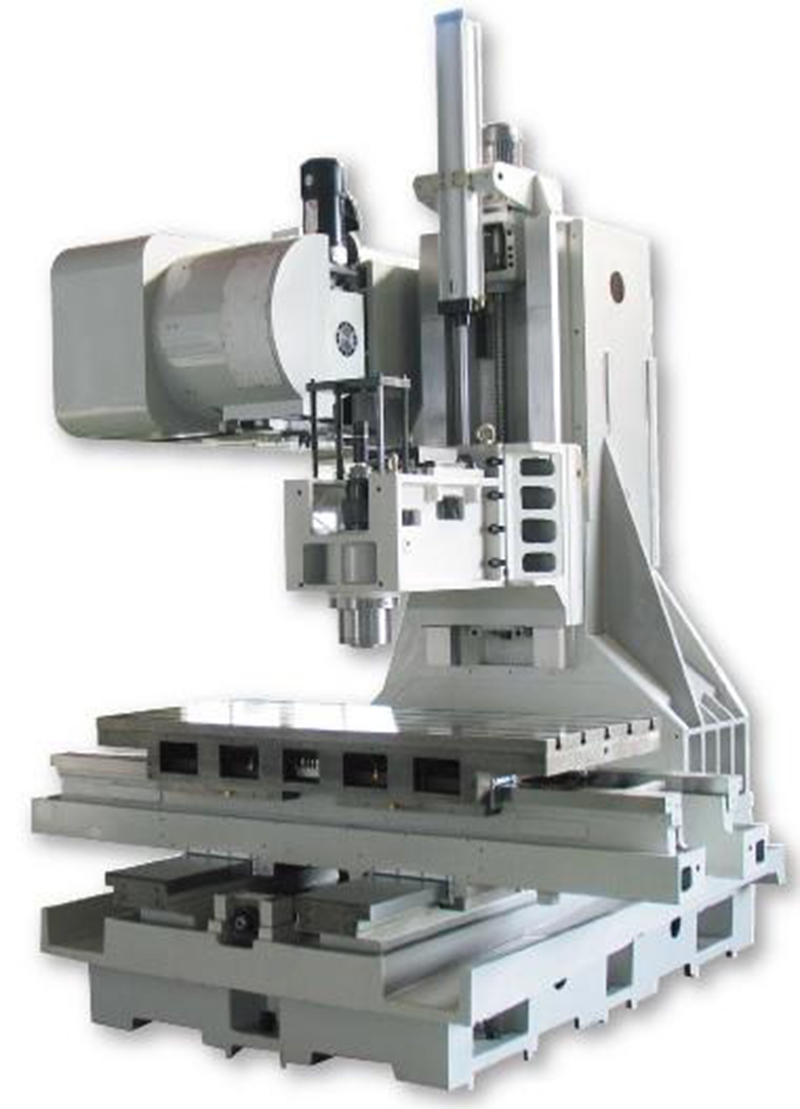

Triangulate wide-stance base incorporates a durable ribbed box
Specification:
| ITEM | UNIT | VM-1000 |
| Table size | mm | 1300 x 600 |
| Max. table load | kg | 800 |
| X aix travel | mm | 1000 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Spindle taper | ISO | 40 |
| Spindle speed | rpm | 10000 |
| Motor output | kW | Fagor：11/15.5 |
| Fanuc：11/15 | ||
| Siemens：11/16.5 | ||
| Heidenhain：10/14 | ||
| X/Y/Z Rapid feed | m/min | 24/24/24 |
| Guideway type | Box way | |
| ATC | Tool | 24 arm type |
| Machine weight | kg | 5000 |
Standard accessories:
Belt spindle (10000rpm)
Coolant system
ATC(24T)
Heat exchanger
Optional accessories:
Enlarge spindle motor
Coolant through spindle with high pressure pump
Wash down device
Chip conveyor & bucket
Air conditioner
EMC
Safety module
Coolant gun
4th axis preparation (wiring only)
4th and 5th axis preparation (wiring only)
4th axis rotary table
4th /5th axis rotary table
Oil skimmer
Spindle oil cooler
Tool setting probe
Work piece measuring probe
