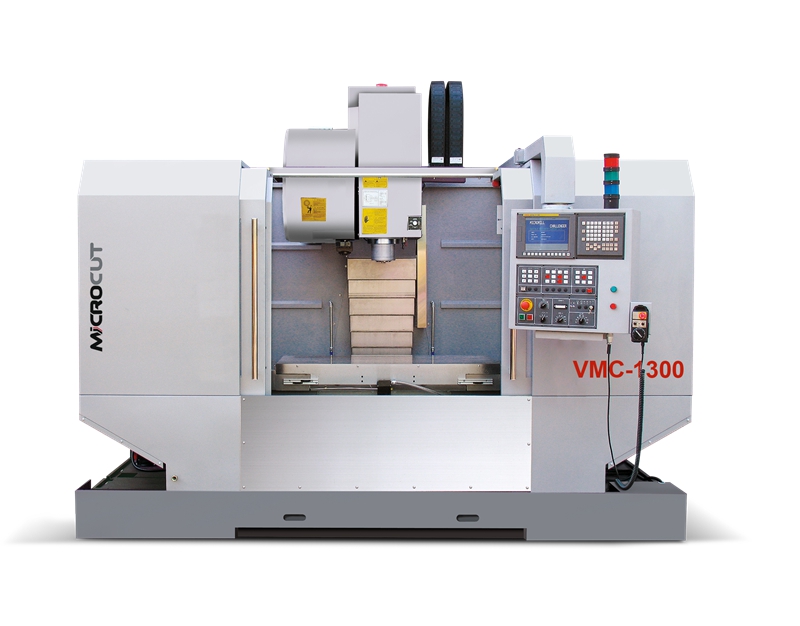

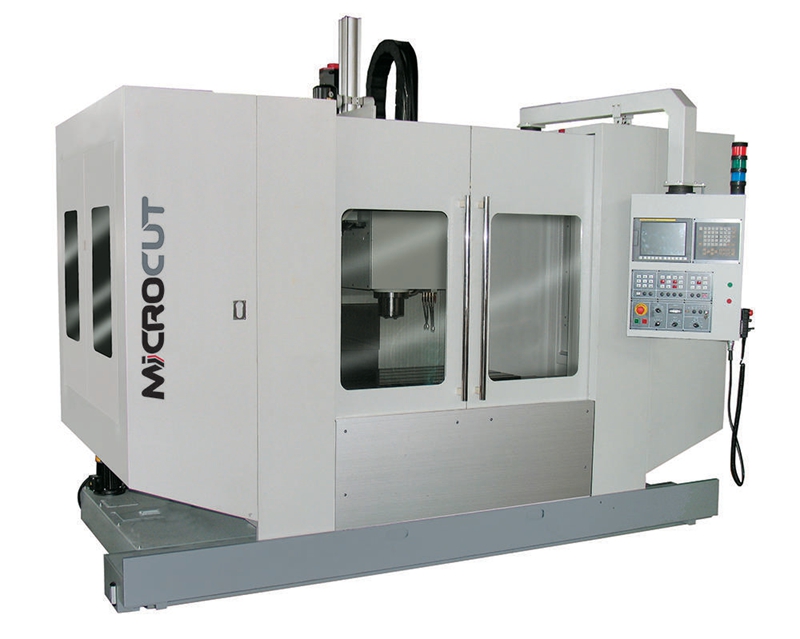

Microcut VMC-1300 Vertical Machining Center
Features:

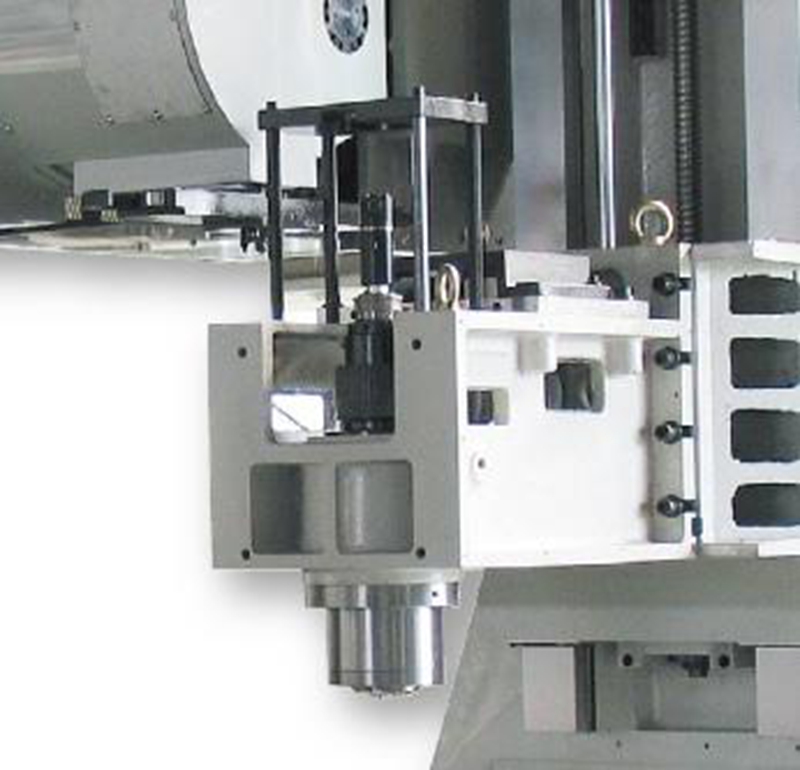

High speed precision spindle at 10000rpm For ISO40, 6000rpm for ISO50 with spindle oil cooler.
Specification:
| ITEM | UNIT | VMC-1300 | |
| Table size | mm | 1500 x 660 | |
| Max. table load | kg | 1200 | |
| X axis travel | mm | 1300 | |
| Y axis travel | mm | 710 | |
| Z axis travel | mm | 710 | |
| Spindle taper | ISO40/ISO50 | ||
| Transmission | Belt | Geared | |
| Spindle speed | rpm | 10000 (ISO40) / 6000(ISO50) | |
| Motor output | kW | ISO40 Spindle | ISO50 Spindle |
| Fagor: 11/15.5 | Fagor: 17/25 | ||
| Fanuc: 11/15 | Fanuc: 15/18.5 | ||
| * | Siemens: 15/22.5 | ||
| Heidenhain: 10/14 | Heidenhain: 15/25 | ||
| X/Y/Z Rapid feed | m/min | 24/24/24 | |
| Guideway type | Box way | ||
| ATC | Tool | 32 (Arm type) | |
| Machine weight | kg | 8100 (ISO 40) | |
| 9100 (ISO 50) | |||
Standard accessories:
Belt spindle (6000 rpm)
Coolant system
ATC(32T)
Heat exchanger
Optional parts:
Enlarged spindle motor
Spindle oil cooler for ISO 40 spindle
ISO 50 spindle taper & gear head with oil cooler option of 32 or 24 tools ATC
Coolant through spindle with high pressure pump
Wash down device
Chip conveyor & bucket
Air conditioner
4th axis preparation (wiring only)
4th and 5th axis preparation (wiring only)
4th axis rotary table
4th /5th axis rotary table
Oil skimmer
Safety module
EMC
Transformer
Optical scale for 3 axes
Coolant gun
Tool setting probe
Work piece measuring probe
