BC20-3V

Casing: Metal casing

Response Speed: 60mmin. (198.6feetmin).

Dimension: 290″190″105mm for BC20

Weight: 1.1KG for TOP20,2.85KG for BC20.

Quantizing error: +-1count.

Connection Type: 9 pin D-type.

Encoder input: 5v TTL 90 quadrature phase difference.

Keypad type: Membrane with PCB mounting tactile switch.

Power Source: AC 110-220V, 50-60 Hz.

Power: Universal power supply.

Temperature: Operating 0 ~ 40 deg C.

Display: 8-digits green color LED display.



General Functions

Metric/lmperial Conversion. Zero Reset. Preset Dimension 1/2 Distance Mode to aid Centre Finding. Recall Memorised Position.

Absolute and Incremental coordinate display modes.

Mechanical Zero & Workpiece Zero.

Shrink Function: Shrinkage allowance can be set to compensate for casting or moulding shrinkage.

Pitch Circle Diameter (PCD) Function: The console will output X and Y coordinates for each hole.



Calculator Functions

Maths Functions: Add, Subtract, Multiply, Divide

Trig Functions: SIN, COS, TAN, SIN-1, COS-1, TAN-1, X2, v, I (pi)

Axis position can be transferred to calculator as an operator.

Result can be transferred back to an axis



EDM Functions

EDM depth control function



Lathe Functions

Tool Compensation and Tool Number.

Diameter or Radius Reading.

Set tool compensation dimension.



Mult-function Functions (for millirg, boring, lathe, gridng, ED)

1) PCD circular sub-holes (for milling, EDM)

2) Slash punch (for milling machine)

3) Tool compensation function (for milling machine)

4) Taper measurement function (for lathe)

5) Slope processing (for milling machinel

6) R arc function (for milling machine)

7) 200 tool magazine (for lathe)

8) EDM functions (for EDM, ordered separately)

9) 8S-232 communication (ordered separately)

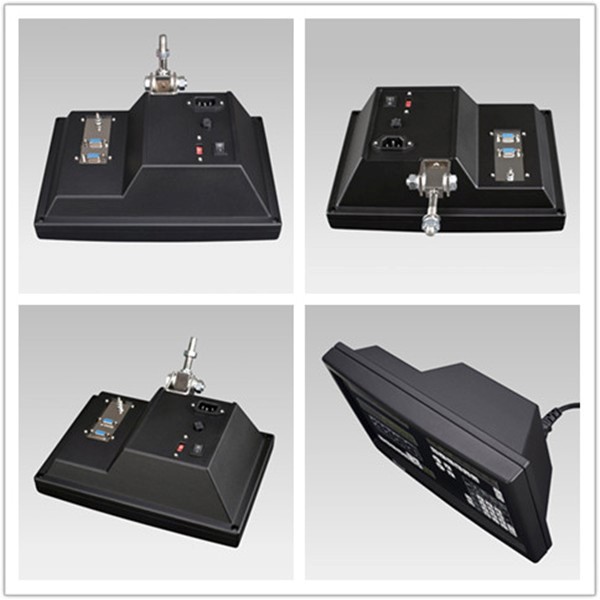

Product detail pictures:
