V Series CNC Milling machine three track
| Model | Unit | V-6 | V-8 | V-11 |
| Travel | ||||
| X axis travel | mm | 600 | 800 | 1100 |
| Y axis travel | mm | 400 | 500 | 650 |
| Z axis travel | mm | 450 | 500 | 650 |
| Distance from spindle end to worktable | mm | 170-620 | 100-600 | 100-750 |
| Distance from spindle center to column | mm | 480 | 556 | 650 |
| Worktable | ||||
| Worktable size | mm | 700x420 | 1000x500 | 1200x650 |
| Maximum load | kg | 350 | 600 | 2000 |
| T-slot (width-slot number x pitch) | mm | 18-3x125 | 18-4x120 | 18-5x120 |
| Feed | ||||
| Three-axis rapid feed | m/min | 60/60/48 | 48/48/48 | 36/36/36 |
| Three-axis cutting feed | mm/min | 1-10000 | 1-10000 | 1-10000 |
| Spindle | ||||
| Spindle speed | r.p.m | 12000(OP10000~15000) | 12000(OP10000~15000) | 8000/10000/12000 |
| Spindle specifications | BT40 | BT40 | BT40/BT50 | |
| Spindle horsepower | kw | 5.5 | 7.5 | 11 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 |
| Machine weight | kg | 4200 | 5500 | 6800 |
| Machine size | mm | 1900x2350x2300 | 2450x2350x2650 | 3300x2800x2800 |
CHARACTERISTICS
• Best bed structure design, can withstand the inertia generated by high G, as firm as a rock and stable as a mountain.
• Short nose spindle has excellent rigidity, which improves efficiency and reduces tool wear.
• Three-axis rapid displacement, greatly shortening the processing time.
• Highly stable tool change system, reducing non-processing time.
• Using the rear chip removal structure, it is convenient to clean up the waste and not easy to leak oil.
• All three axes are supported by high-rigidity linear rails with fast speed and high precision.
Optical machine characteristics

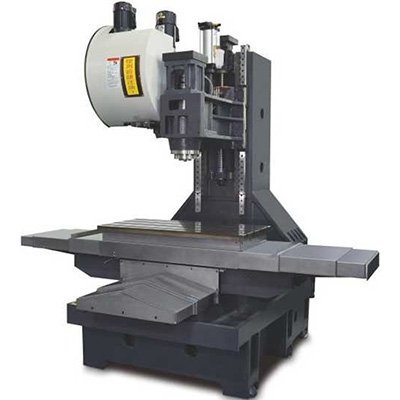

Tool library
Disc-type automatic tool changer, it only takes 1.8 seconds to change the tool using 3D cam. The tool tray can accommodate 24 tools, which can adapt to various processing needs; the tool is easy to load and unload, use any type, and tool management and registration are more convenient.
Spindle
The design of the short nose of the spindle head and the ring-shaped water flushing can maximize the transmission efficiency of the spindle motor. The cutting rigidity is particularly good, which improves the machining accuracy and extends the life of the spindle.
Without counterweight
The Z-axis adopts a non-counterweight design and is matched with a high-power brake servo motor to improve the Z-axis drive performance to achieve high speed and best surface finish.
Slide
The three axis adopts Taiwan HIWIN/PMI linear slide, which has high rigidity, low noise, low friction, and high sensitivity, which can improve the processing speed and accuracy.
