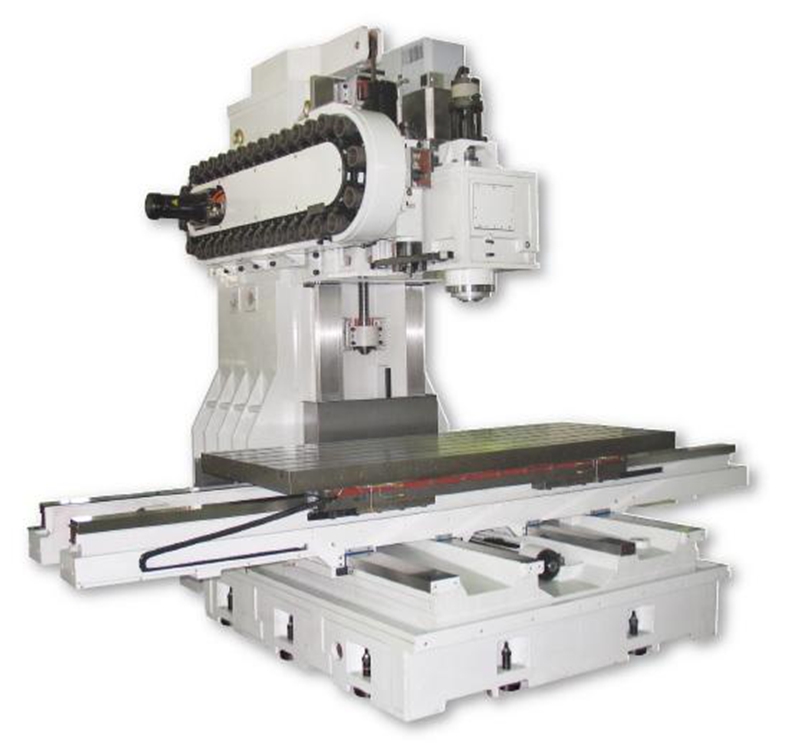

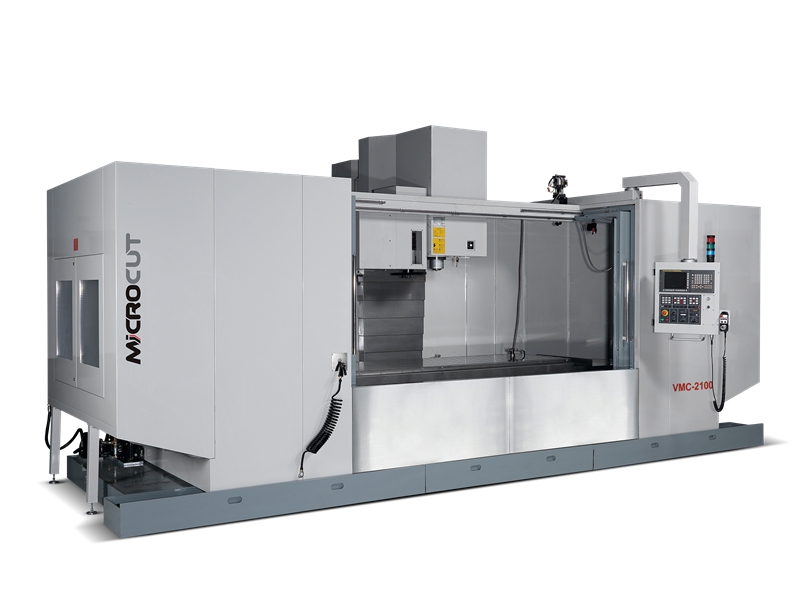

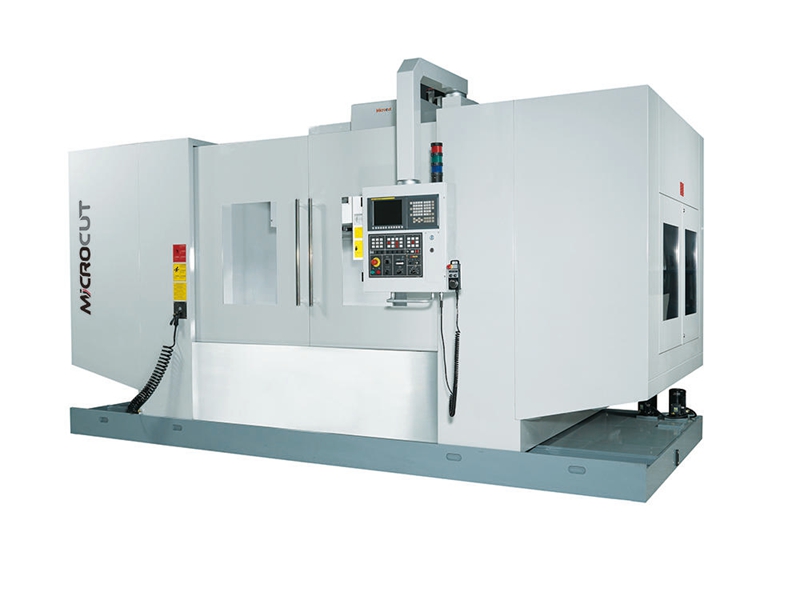

VMC-2100 Vertical Machining Center Super high loading capacity
Specification:
| ITEM | UNIT | VMC-2100 | |
| Table size | mm | 2400 x 900 | |
| Max. table load | kg | 2500 | |
| X axis travel | mm | 2100 | |
| Y axis travel | mm | 900 | |
| Z axis travel | mm | 850 | |
| Spindle taper | ISO | ISO 40 / ISO 50 | |
| Spindle speed (std / opt) | rpm | 10000 (ISO 40) | 6000 (ISO 50) |
| Motor output | kW | Fagor：15/22 | Fagor：18.5/26 |
| Fanuc：15/18.5 | Fanuc：18.5/22 | ||
| Siemens：15/22.5 | Siemens：18.5/27.75 | ||
| Heidenhain：15/25 | Heidenhain：20/30 | ||
| X/Y/Z Rapid feed | m/min | 20/20/18 | |
| ATC | tool | 40 (ISO 40) / 32 (ISO 50) Arm type | |
| Machine weight | kg | 22500 | |
Standard accessories:
ISO40
ISO40 direct spindle (10000rpm)
ATC(40T)
Chip auger
Water gun
Heat exchanger
ISO50
ISO50 gear spindle (6000rpm)
ATC(32T)
Heat exchanger
Chip auger
Water gun
Oil coolant system
Optional parts:
ISO40
ISO 40 direct spindle (10000 rpm)
Coolant through spindle with high pressure pump
Wash down device
Chip conveyor & bucket
Air conditioner
4th axis preparation (wiring only)
4th and 5th axis preparation (wiring only)
4th axis rotary table
4th /5th axes rotary table
Oil skimmer
Safety module
EMC
Coolant gun
Optical scales for 3 axes
Tool setting probe
Work piece measuring probe
ISO50
ISO 50 gear spindle (6000 rpm)
Coolant through spindle with high pressure pump
Wash down device
Chip conveyor & bucket
Air conditioner
4th axis preparation (wiring only)
4th and 5th axis preparation (wiring only)
4th axis rotary table
4th /5th axes rotary table
Oil skimmer
Safety module
EMC
Coolant gun
Optical scales for 3 axes
Tool setting probe
Work piece measuring probe
